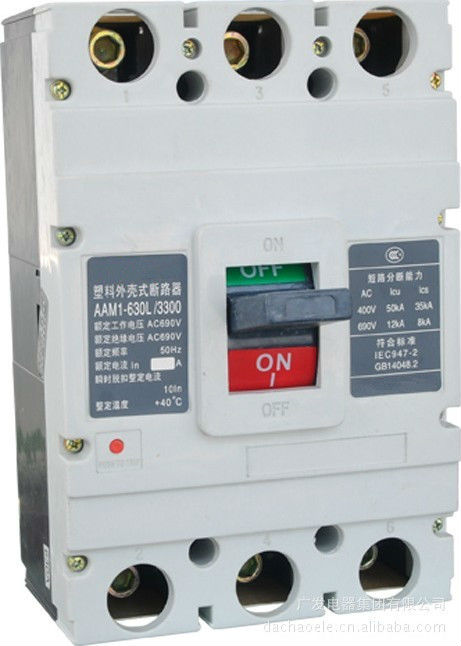

63A~800A 3P/4P CM1 Mould Case Circuit Breaker MCCB

FOB Reference Price:Get Latest Price
US $0.1-10 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangxi, China (Mainland)
Brand Name:
SG mould case circuit breaker
Model Number:
SGM1 CM1 MCCB
Type:
Moulded Case, cm1 high breaking
Poles Number:
3 or 4
current:
63A100A225A400A630A800A1250A
Frequency:
50/60Hz AC
according:
IEC60947-2 60947-4
Certification:
ISO9001, CCC.CE
rated operating:
690V
package:
Packing in the carton and box
poles:
3 or 4 Poles
Function:
Protect the equipment from short-circuit, overload and undervoltage.
Product name:
mould case circuit breaker
SupplyAbility
SupplyAbility:
20000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
SG/OEM CM1 mould case circuit breaker
Port
FOB NINGBO/SHANGHAI

          mould case circuit breaker mould case circuit breaker mould case circuit breaker mould case circuit breakermould case circuit breakermould case circuit breaker

Product Description

Product Description

 CM1 series moulded case circuit breaker is new type product developed and manufactured by adopting international advanced technology.it is supplied with rated insulation voltage 800V and used for circuit of A.C.50Hz,rated operating voltage AC 400V,or below rated operating current up to 800A for infrequent changing over and strting of the motors.equiped with the protection devices for over-current.short circuit and under voltage.the product is capable of preventing damage of circuits and supply units.the product conforms to IEC60947-2 stardand

Note:



(1) No code for distributing circuit breaker ,2 represents circuit breaker for motor protection

(2)No code for direct handle operation  ,D represents motor operation ,Z represent rotation handle

(3)L: represents standard type, M: represents higher breaking type and H : represents high breaking type .



TypeRated current (A)Num-ber of PolesRated insul-ation voltage(V)Arcing-Over Distance (mm)Ultimated short Circuit Breaking Capacity(KA)Service Short Circuit Breaking Capacity(KA)Operation performa-nce
ONOFF
CM1-63L6,10,16,20,25,32,40, 50,633P, 4P660V480V02515008500
CM163M050
CM1-100C6,10,16,20,25,32,40, 50,63,80, 100025
CM1-100L0( ≤50)35
CM1-100M0( ≤50)50
CM1-100H0( ≤50)85
CM1-225C100,125, 160,180, 200≤502510007000
CM1-225L≤5035
CM1-225M≤5050
CM1-225H≤5085
CM1-400C225,250, 315,350, 400≤503510004000
CM1-400L≤5050
CM1-400M≤5065
CM1-630C400, 500, 630≤10035
CM1-630L≤10050
CM1-630M≤10065
CM1-630H≤100100
CM1-800M630,700,800≤10065
CM1-800H≤100100



Product Overviews

Product Overviews



mould case circuit breaker mould case circuit breaker mould case circuit breaker
