f360 rccb circuit breaker residual current circuit breaker differentiation device

FOB Reference Price:Get Latest Price
$0.10 - $4.45 / Pieces | 100 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 5000 Pieces)
Customized packaging (Min. Order: 5000 Pieces)

More

Graphic customization (Min. Order: 5000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangxi, China
Brand Name:
SG
Model Number:
F360
Type:
Residual Current, Residual Current
Poles Number:
2P,4P, 2,4
Rated conditional short circuit current:
3000-6000A
coloe:
meet your demand
Rated current(A):
10,16,25,32,40,63,80,100A
Rated voltage:
AC 230 415v
protection degree:
IP20
Rated residual operating current(ln)(mA):
100,300,500MA
Rated residual Non-operating current:
≤0.5
rated operating current:
0.03A,0.1A,0.3A,0.5A
Supply Ability
Supply Ability:
200000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
f360 rccb circuit breaker residual current circuit breaker differentiation device
Port
FOB NINGBO /SHANGHAI
Lead Time :
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 30 To be negotiated

f360 rccb circuit breaker residual current circuit breaker differentiation device f360 rccb circuit breaker residual current circuit breaker differentiation device f360 rccb circuit breaker residual current circuit breaker differentiation device f360 rccb circuit breaker residual current circuit breaker differentiation device f360 rccb circuit breaker residual current circuit breaker differentiation device f360 rccb circuit breaker residual current circuit breaker differentiation device f360 rccb circuit breaker residual current circuit breaker differentiation device

Product Description

Product Description

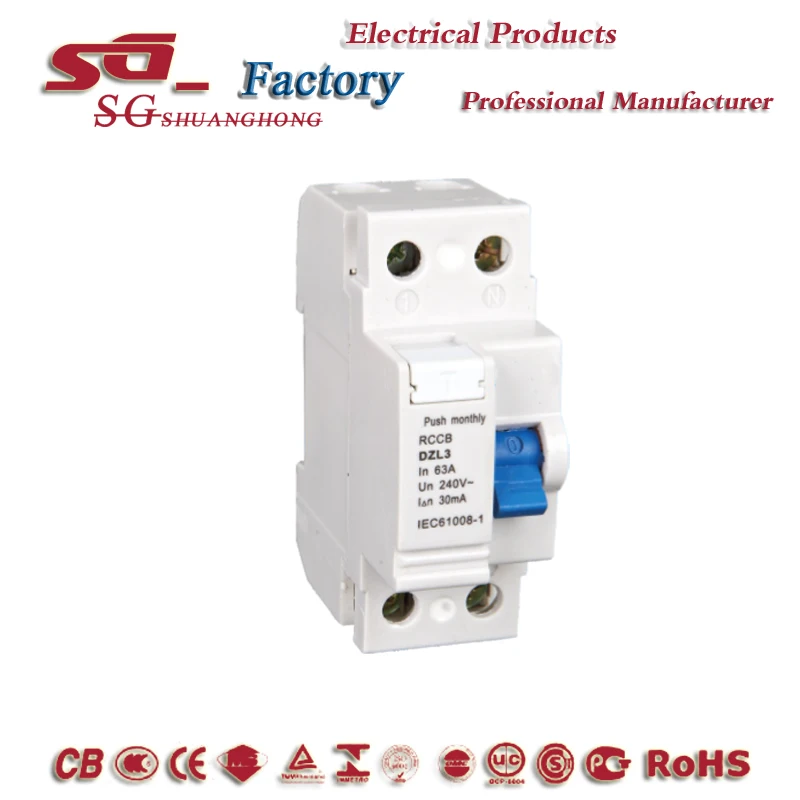

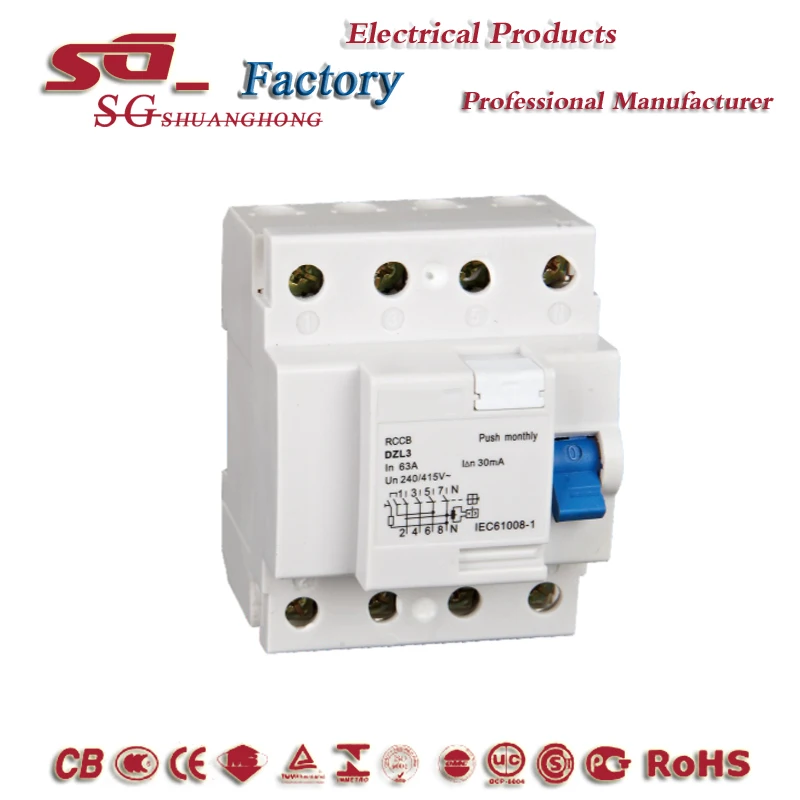

f360 rccb circuit breaker residual current circuit breaker differentiation device



SGF360 SERIES



          Residual Current Circuit Breaker provide the function of isolation switching and earth leakage protection of electrical circuits.And also provide the indirect protection of the operator's body against the dangerous effects of electric current and provide the protection of the fire caused by the electrical circuit fault.

Standard
GB16916
IEC61008
Product's advantage
1.Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
2.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
3.The fast and flexible production form aim at the customer require;
4.The deliveries exactly in accordance with customer orders
5.The fast transportation.
6.Adopt electromagnetic style release , can play a leak electricity and electric shock protecting role while breaking in zero Line.



Application scope

Normal operation and mounting requirement :
·Circumstance temperature -5°C ~ +40°C, average temperature not exceeding 35°C.
·Altitude above sea level less than 2000 m.
·Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
·Installation class II or III.
·Pollution class II.
·Installation method DIN Rail mounting type.
·The external magnetism shall not be more than 5 times of terrestrial one.
·Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the hand
Construction features :
1.Measuring component and buckling component of products is located between enter line end and entrance line end ;
2.Movement characteristic of products can not be changed with outside mechanical tool ;
3.The operating organization has the free function to take off and buckle;
4.Operate part can not be taken down from the shell outer of products , the shell can not influence the operating organization to work , the accessory group which replace the feelers pressure, should guarantee the feelers pressure does not change while running.



Type and

specification



Rated current







Rated voltageRated operating current(lΔn)Residual operating current   rauge             Rated conditional short circuit current        Mechanical life

2poles







10A,16A,25A,32A,40A,63A,80A,100A

AC  230V

0.03A

0.1A

0.3A

0.5A

0.5lΔn-1lΔn

3000A~

6000A

10000

      4poles







AC 415V



Number of Poles2P,4P
Rated Current (A)16,20,25,32,40,50,63,80,100
Rated Residual Operating Current(In)(mA)10,30,100,300,500
Rated Residual Non-operating Current(Ino)(mA)≤0.5In
Rated Voltage(V)AC 230/240
Rated Voltage(V)AC 400/415
Residual Operating Current Scope0.5In~1h
Rated Current Off-time≤0.3S
Shoet Circuit Capacity(Icu)3000A
Endurance4000
Protection DegreeIP20







Product Overviews

Product Overviews





 ~~
