SGB1 ELCB 1-63amp SG400LE earth leakage circuit breaker RCBO

FOB Reference Price:Get Latest Price
$1.46 - $4.15 / Pieces | 120 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 2000 Pieces)

More

Graphic customization (Min. Order: 2000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangxi, China
Brand Name:
SG
Model Number:
SGB1 ELCB
Type:
Earth Leakage
Poles Number:
4
rated voltage:
220V/380V
no. of pole:
1,2,3,4P. +N
rated current:
1-63A
leakage action current:
30,100mA
leakage static current:
15,50mA
leakage action times:
Less than 0.1s
Certificate:
CE
Standard:
GB10963/IEC60898
Rated frequency:
50/60Hz
Product name:
MCB+RCD
Supply Ability
Supply Ability:
2000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
SG/OEM
Port
FOB NINGBO/SHANGHAI

 earth leakage circuit breaker RCBO  earth leakage circuit breaker RCBO  earth leakage circuit breaker RCBO  earth leakage circuit breaker RCBO  earth leakage circuit breaker RCBO  earth leakage circuit breaker RCBO  earth leakage circuit breaker RCBO  earth leakage circuit breaker RCBO  earth leakage circuit breaker RCBO  earth leakage circuit breaker RCBO

Product Description

Product Description

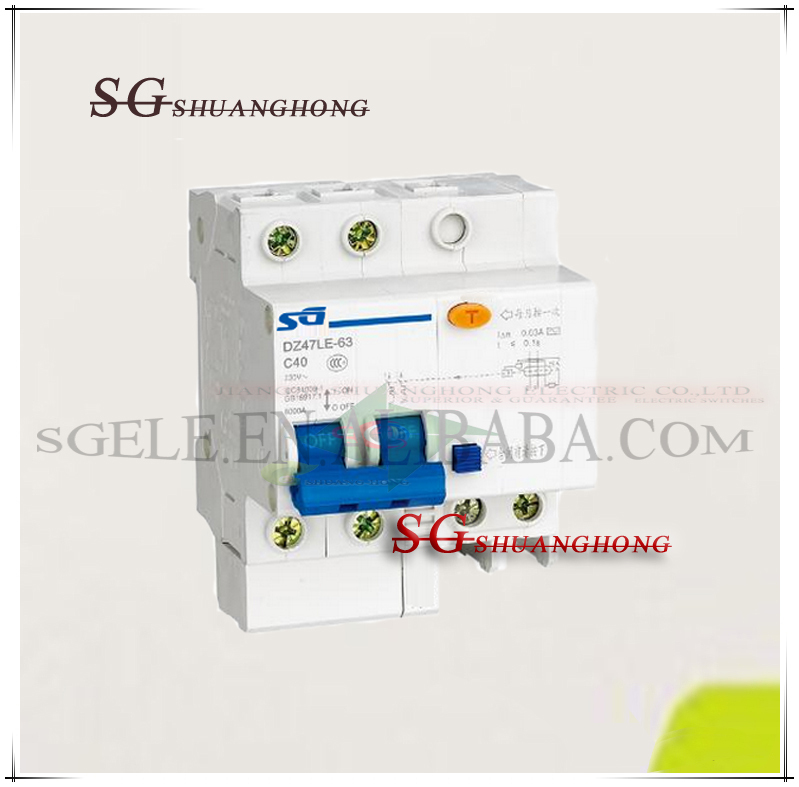

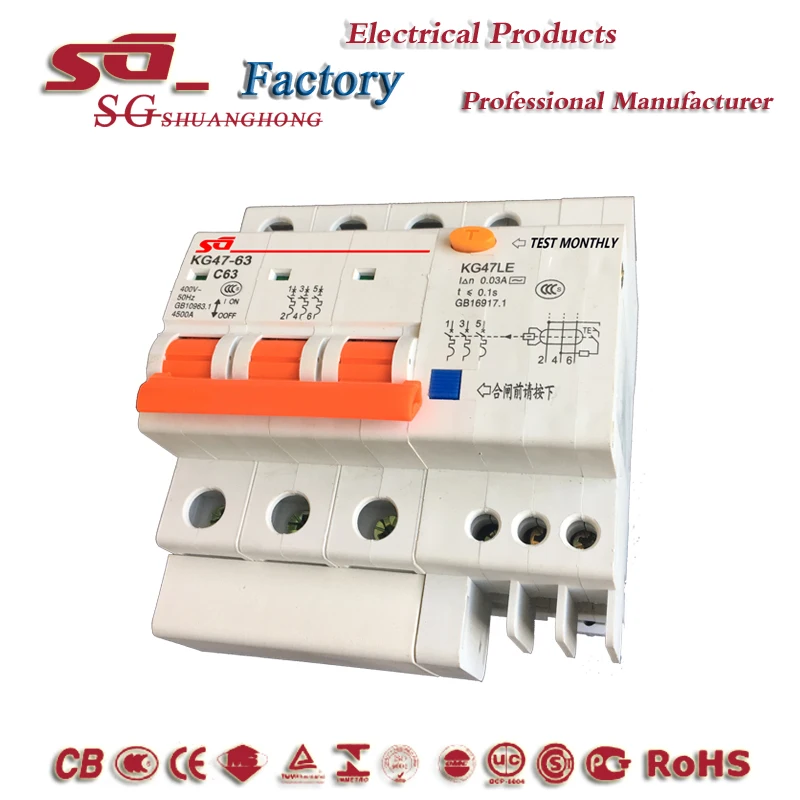

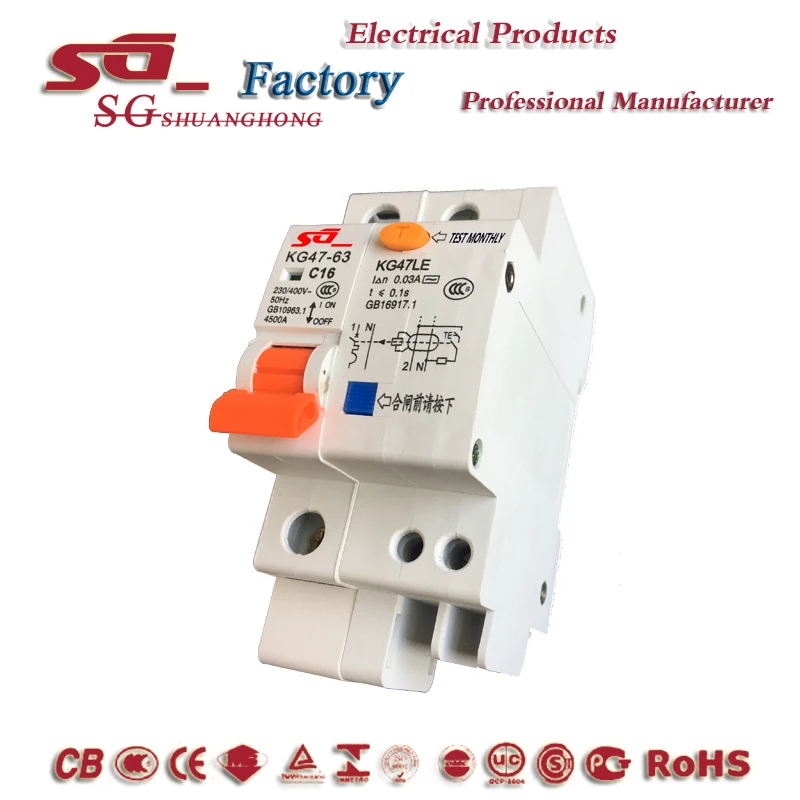

           SGB1 ELCB residual current circuit breaker simply fits onto the right hand side of any DZ47 miniature circuit breaker which forms DZ47LE to provide a high level of protection against earth leakage fauls in addition to the overload and over current protection by the MCB alone



Construction features :

1.Measuring component and buckling component of products is located between enter line end and entrance line end ;
2.Movement characteristic of products can not be changed with outside mechanical tool ;
3.The operating organization has the free function to take off and buckle;
4.Operate part can not be taken down from the shell outer of products , the shell can not influence the operating organization to work , the accessory group which replace the feelers pressure, should guarantee the feelers pressure does not change while running.



Rated voltage(V)Pole NoRated current (A)Leakage action current(mA)Leakage static current(mA)Leakage action time(s)
220V1P1~103015<0.1
15~32
380V2,3,4P40~6310050

a.TH35-7.5 rail is used for the product installation

b.Outline and installation dimensions(see the figure ad the table)



TypeDimensions
ABCDE
SG401LE-63/1N4670404594
SG402LE-63/26470404594
SG403LE-63/39170404594
SG403LE-63/3N10070404594
SG404LE-63/411870404594
