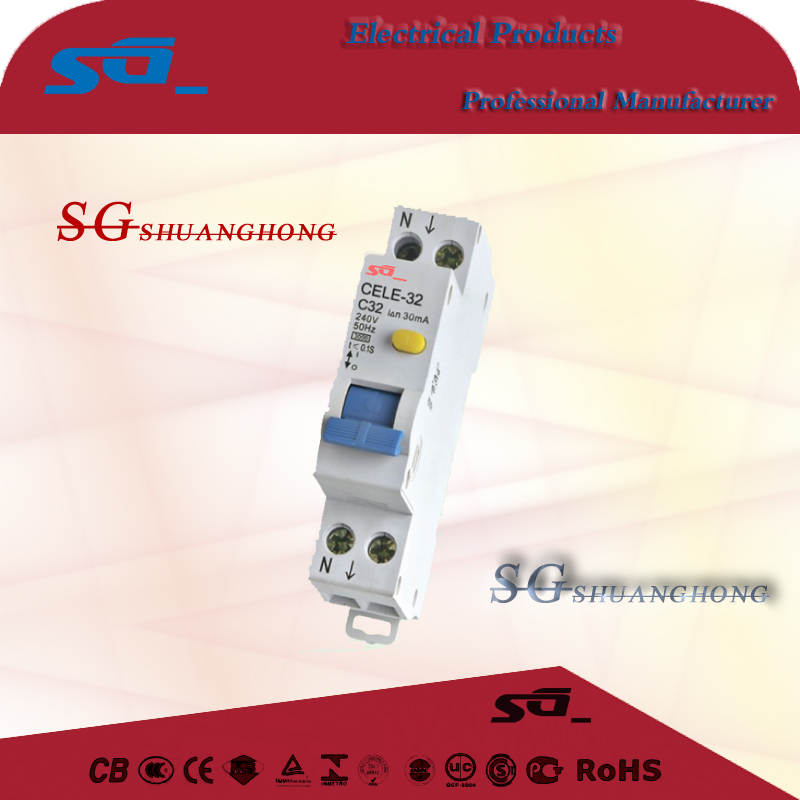

6-32amp 230V 3KA DNLE DPNLE small ELCB Earth Leakage Circuit Breaker

FOB Reference Price:Get Latest Price
US $1-10 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangxi, China (Mainland)
Brand Name:
SG
Model Number:
SG40PN-32L
Type:
Residual Current
Poles Number:
1+N
Rated voltage:
230V
rated current:
6,10,16,20,25,32A
no. of pole:
1+N
rated current frame:
32
rated leakage operating:
30
rated leakage non-operating:
15
breakig capacity:
3000A
Supply Ability
Supply Ability:
300000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
SG/OEM earth leakage circuit breaker
Port
NINGBO/SHANGHAI

      earth leakage circuit breakerearth leakage circuit breakerearth leakage circuit breakerearth leakage circuit breakerearth leakage circuit breakerearth leakage circuit breakerearth leakage circuit breaker

Product Description

Product Description

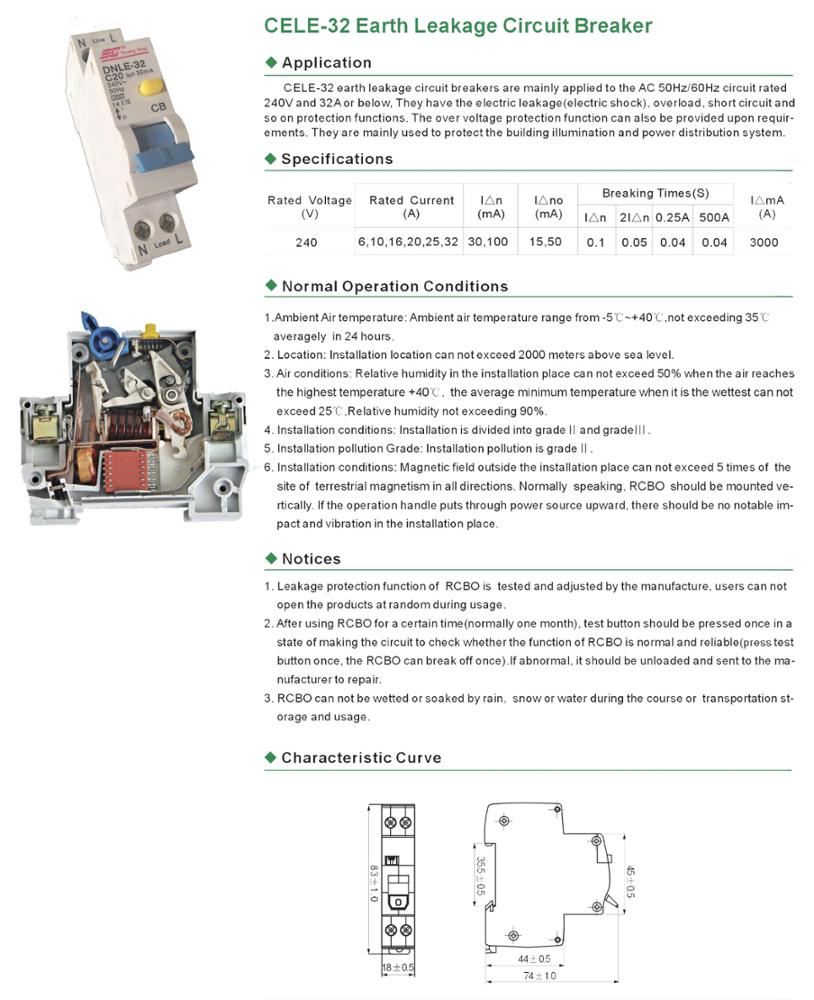

        SGPN-32LE leakage protective breaker is used in the single phase residence circuit of AC 50Hz/60Hz, rated voltage230V, used as electron shock protection, it can protect civil electron circuit from overload and short circuit This produce has advantages of small volume, high breaking capacity zero,and live wire are cut off at the same time ,also protecting person from electric shock when the live wire connected opposite. This product conforms to IEC61009, GB16917 Stardands.



Rated
current(A)
No.of
pole
Rated
Voltage(V)
Rated current
of frame
Rated leakage
operating
Rated leakage
non-operating
current Rated leakage
breaking time
Breaking
capacity(A)
 6,10,16, 20,25,321+N230323015≤0.1s3000
